Direct API Integration Step

This guide is intended for developers, detailing how to integrate online payment functionality via the Direct API. It supports Payment, Retrieve, Capture, Refund, Cancel, and Recurring scenarios.

🌐 Language Switch / 语言切换

English | 中文

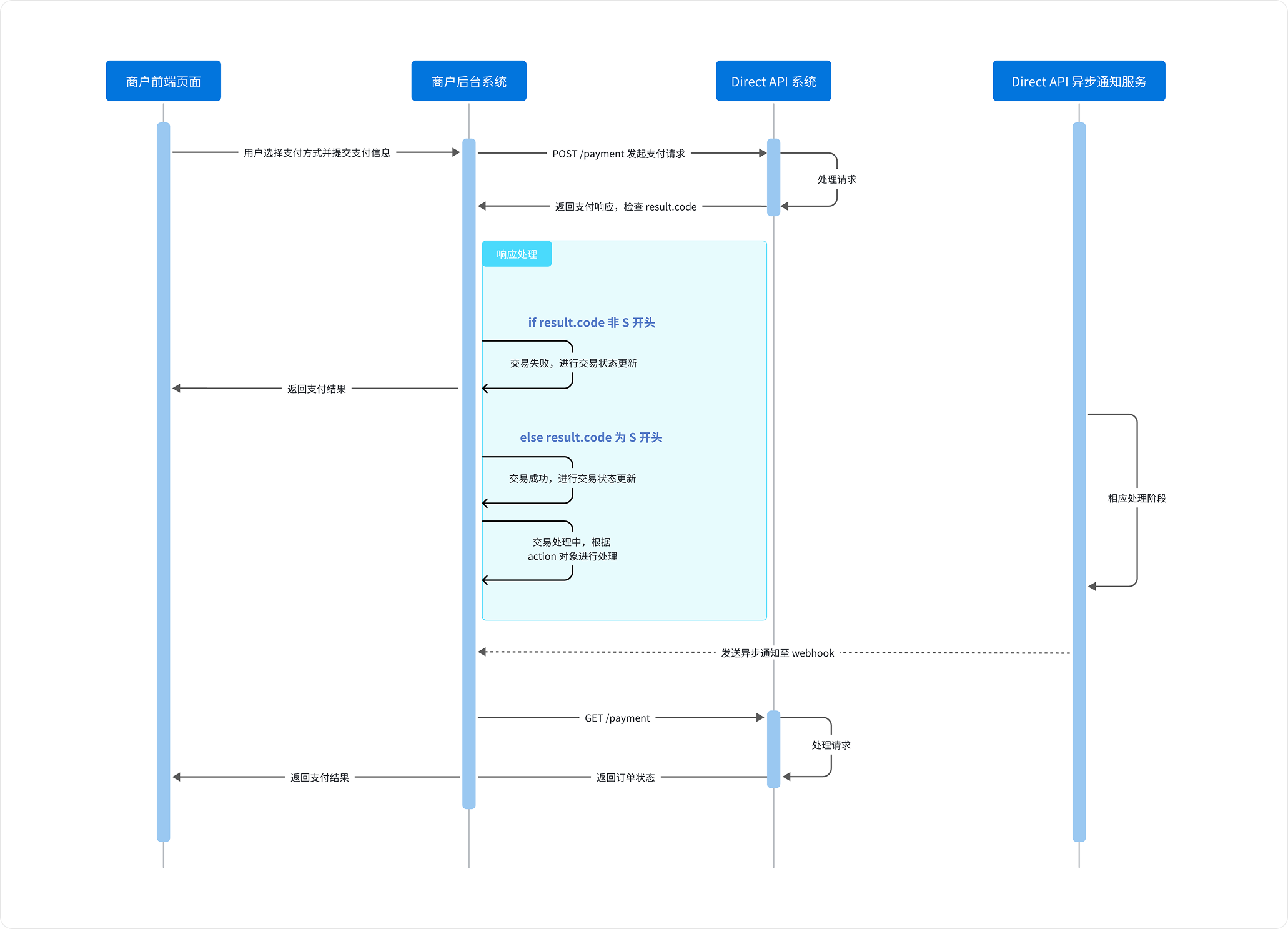

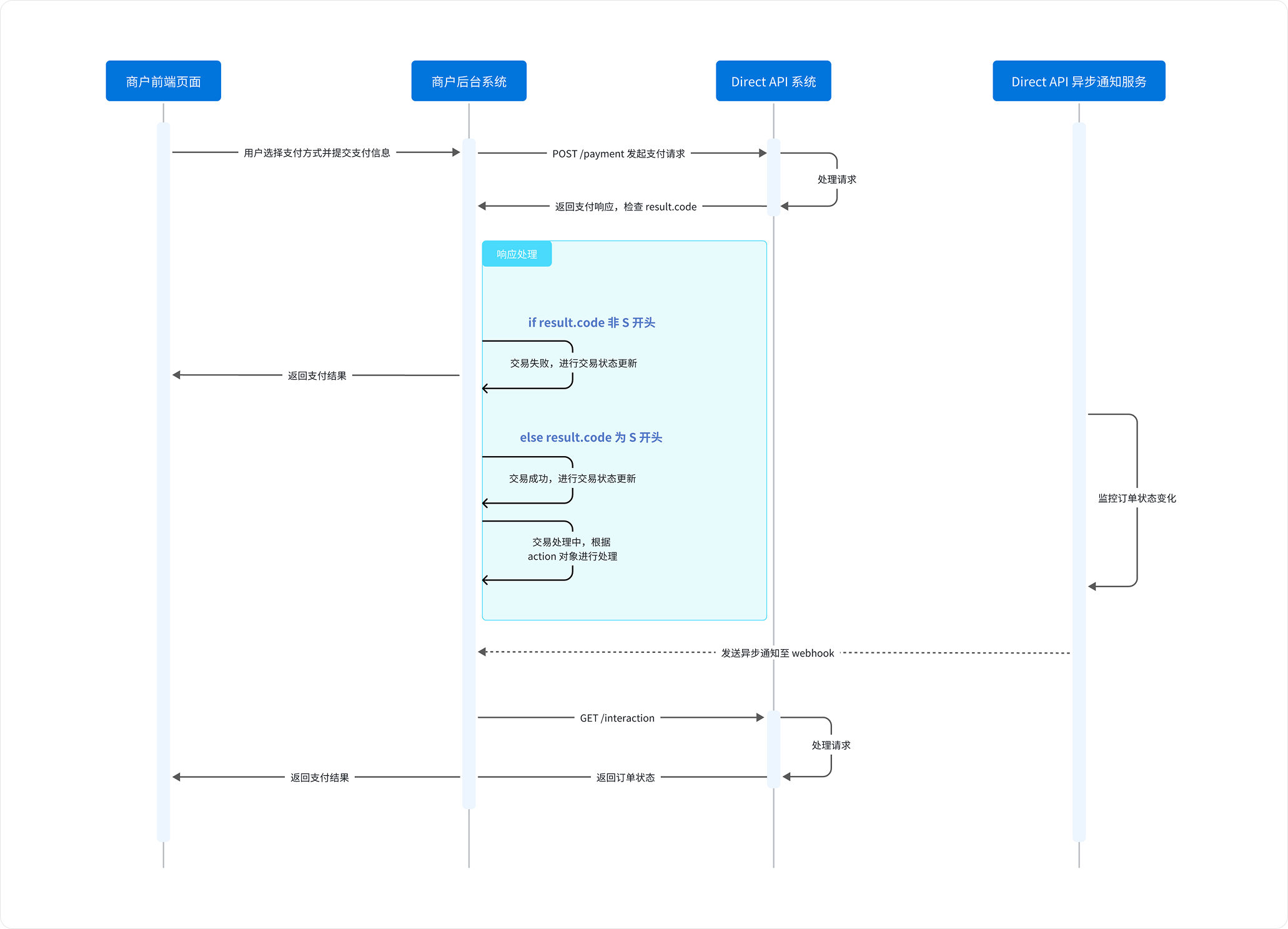

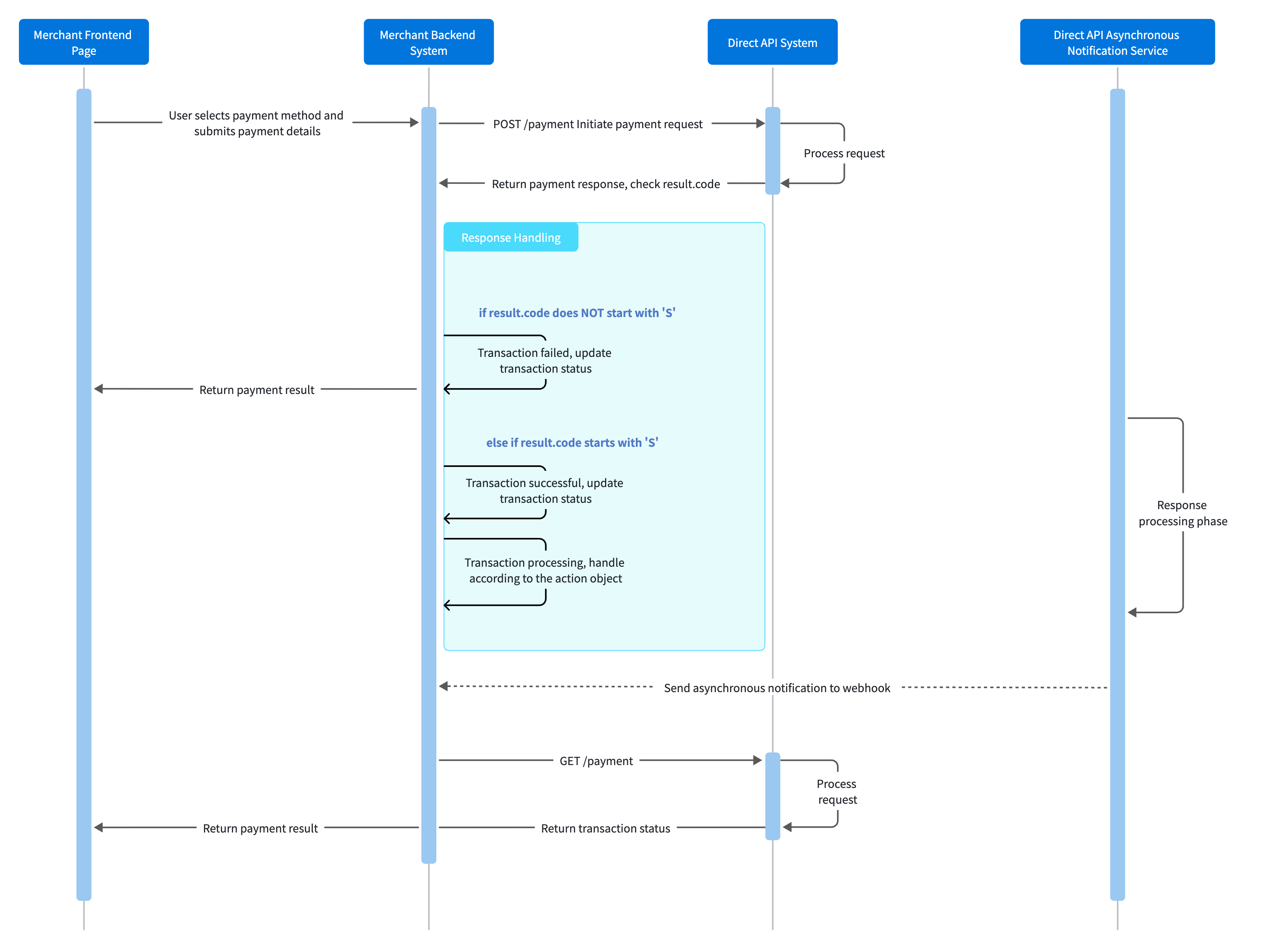

The following steps and field descriptions are designed to help you clearly understand the entire payment process and ensure a smooth integration.

1. Display Payment Methods

On the checkout page, display the available payment methods. After the user selects a payment method and enters the required information (e.g., card number, expiry date), submit the data to your backend.


2. Initiate a Payment Request

Your backend should submit a payment request via the POST /payment interface. The request must include the KeyID, secret Key, and an Idempotency Key.

All API interfaces adopts a KeyIDand Key-based authentication mechanism to validate the legitimacy of requests. No additional signing or encryption/decryption operations are required.

Request Example:

curl --location --request POST 'https://sandbox.evonetonline.com/payment' \
--header 'Authorization: sk_sandbox_3bf8181129cb4c9aa3d62cd113b6518a' \
--header 'DateTime: 2025-07-09T11:18:00+08:00' \
--header 'KeyID: kid_55209b3968f748609dbe3a9dde87fdd3' \
--header 'SignType: Key-based' \
--header 'Content-type: application/json' \
--header 'Idempotency-Key: order_202507091032_001' \
--data '{
    "merchantTransInfo": {
        "merchantTransID": "pay_250709135509000153215434"
        "merchantTransTime": "2025-07-09T11:18:00+08:00"
    },
    "transAmount": {
        "currency": "HKD",
        "value": "100"
    },
    "paymentMethod": {
        "type": "card",
        "card": {
            "cardInfo": {
                "cardNumber": "4761360072118507",
                "expiryDate": "0529",
                "holderName": "Paulette Homenick"
            }
        }
    },
    "captureAfterHours": "0",
    "allowAuthentication": true,
    "returnURL":"https://www.evonetglobal.com",
    "webhook": "https://webhook.merchant.com"
}

Key Fields：

Field NameTypeDescriptionNotes
merchantTransInfo.merchantTransIDstringUnique merchant transaction IDUsed for query, refund, and other operations
paymentMethod.typestringPayment method type (e.g., card, e-wallet)Must match the corresponding structure. See example below
captureAfterHoursstringHours to delay automatic capture"0" means capture immediately
allowAuthenticationbooleanWhether to enable 3DS authenticationRecommended: true
returnURLstringURL to redirect to after payment completionRequired if "allowAuthentication": true is sent
webhookstringAsynchronous notification URLFor receiving payment results

paymentMethod.type Example (e-wallet): Different type values have different structures. Please refer to the paymentMethod.type Values for specific parameters.

    "paymentMethod": {
        "type": "e-wallet",
        "e-wallet": {
            "paymentBrand": "Merpay"
        }
    }
📘

Note: Handling Timeouts

The API supports idempotency. If a request times out, retry with the same payload and Idempotency-Key to ensure a consistent response and avoid creating duplicate transactions.


3. Handle the Payment Response

Handle subsequent steps based on the action object in the response. Determine the transaction result using result.code and payment.status:

  • result.code start with 'S' (e.g., S0000): Check payment.status.

    • Success states: authorized、captured、verified、identified
    • Processing states: verify_pending、auth_pending、identify_pending
      • Handle according to action.type (e.g., redirect user to threeDSData.url).

  • result.code does not start with 'S': Transaction failed. Check result.message.

Response Example：

{
    "action": {
        "threeDSData": {
            "method": "GET",
            "url": "https://counter-uat.everonet.com/3ds?dGhyZWVEU1BzcD1ISVRSVVNUJmluc0NvZGU9OTA0NTE5MDAmb3JkZXJOdW09cGF5XzI1MDcxMDE2MDczMDAwMDEwMDAwMDQzODg1NDEmc3RvcmVOdW09UzAwNTIyOCZ0aHJlZWRzSW50ZWdyYXRvck9pZD0xMzY4MjE5MCZ0aHJlZURTQXV0aFVSTD1hSFIwY0hNNkx5OXphWFF0TTJSemN5MWpjSGg1TG1ocGRISjFjM1J3WVhrdVkyOXRMblIzTDNSb2NtVmxaSE10YVc1MFpXZHlZWFJ2Y2k5aGRYUm9Mekl1TVM0d0wyOTJWRlJaWTJ0V1NGbGtjbVp1ZFRKUFVVNWthamxKU1V4S1VXVnNXbVJqYUU1dlowODRPRlZxUTBrPSZyZXR1cm5Vcmw9YUhSMGNITTZMeTkzZDNjdVkyRnlaR2x1Wm05c2FXNXJMbU52YlE9PQ=="
        },
        "type": "threeDSRedirect"
    },
    "authentication": {
        "liabilityShift": false,
        "type": "threeDSPage"
    },
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_250709135509000153215434",
            "evoTransTime": "2025-07-10T08:07:30Z",
            "retrievalReferenceNum": "519116015325",
            "traceNum": "015325"
        },
        "merchantTransInfo": {
            "merchantOrderReference": "mc-250528",
            "merchantTransID": "pay_250709135509000153215434",
            "merchantTransTime": "2025-07-09T11:18:00+08:00"
        },
        "pspTransInfo": {
            "retrievalReferenceNum": "519116015325"
        },
        "status": "verify_pending",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "476136",
            "fundingType": "credit",
            "holderName": "Paulette Homenick",
            "issuingCountry": "IND",
            "last4No": "8507",
            "paymentBrand": "Visa"
        },
        "isNetworkToken": false
    },
    "result": {
        "code": "S0000",
        "message": "Success"
    }
}

Key Fields：

Field NameTypeDescriptionNotes
action.typestringType of action required (e.g., threeDSRedirect)Determines the next steps. See example below
payment.statusstringPayment statuse.g., captured means success, verify_pending requires authentication
result.codestringResult code'S' prefix indicates success, otherwise failure
refund.messagestringResult descriptione.g., "Success" or error message

action.type Example (redirectUser): Different type values require specific handling flows. Relevant data (e.g., action.url) is provided in the action object. Please refer to paymentMethod & action Flow

    "action": {
        "redirectData": {
            "method": "GET",
            "url": "https://stg.openapi.mul-pay.jp/wallet/startSession?p=eyJhY2Nlc3NJZCI6IjBjYWE4M2ZmMzA0NjVhODhhOWE1NjEzZDc3NzMyMzdiIn0"
        },
        "type": "redirectUser"
    }
📘

Note

  • If "payment.status": "authorized" and the captureAfterHours field was not sent, you must manually capture the amount by calling the Capture interface.
  • Implement a fallback mechanism: poll for the final status using the GET /payment interface.

For more parameters, see: API Explorer Payment API.


4. Handle Asynchronous Notifications (Webhook)

Evonet will send payment result notifications via a POST request to your webhook URL. These notifications only contain finalized states, not intermediate processing states.

Notification Example：

{
    "eventCode": "Payment",
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_2507091522550001000000860156",
            "evoTransTime": "2025-07-09T15:22:55+08:00"
        },
        "merchantTransInfo": {
            "merchantOrderReference": "mc-250709",
            "merchantTransID": "pay_2507091522550001000000860156",
            "merchantTransTime": "2025-07-09T11:18:00+08:00"
        },
        "status": "captured",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "476136",
            "last4No": "8507",
            "paymentBrand": "Visa"
        }
    }
}

Required Response：

SUCCESS

Key Field：

Field NameTypeDescriptionNotes
eventCodestringType of notification (e.g., Payment)Check this first to determine the notification type
payment.statusstringPayment statussee logic below
capture.statusstringCapture statuscapture_successed (success), capture_declined (failure)
refund.statusstringRefund statusrefund_successed (success), refund_declined (failure)
cancel.statusstringCancel statuscancel_successed (success), cancel_declined (failure)

Processing Logic:

First, check the eventCode to determine the notification type, then check the relevant status field.

  • Payment - payment.status:

    1. Card Payments (paymentMethod.type = card):

      • captured: Transaction successful.
      • verified: 3DS authentication completed. Wait for a captured notification to confirm success.
      • authorized: Authorization completed. Wait for a captured notification to confirm success. If captureAfterHours = 0 was not sent in the request, you must call the Capture interface.
      • identified: Identity verification completed. Proceed with the payment flow based on business needs.
      • declined: Transaction failed. Check failureCode and failureReason to display to the user for troubleshooting.
      • verify_declined: 3DS authentication failed.
        • If the original POST /payment request had allowAuthentication = true AND authentication.preference = "preferred", you might receive a final status of authorized (wait for captured) or declined instead.
        • If the request parameters were different from the above, treat verify_declined as a final failure.
      • identify_declined: Identity verification failed. Treat this as a final failure.

    2. Non-card Payments：

      • captured: Transaction successful.
      • declined: Transaction failed. Check failureCode and failureReason to display to the user for troubleshooting.

  • Capture - capture.status:

    • capture_successed: Capture successful.
    • capture_declined: Capture failed.

  • Refund - refund.status:

    • refund_successed: Refund successful.
    • refund_declined: Refund failed.

  • Cancel - cancel.status:

    • cancel_successed: Cancel successful.
    • cancel_declined: Cancel failed.
📘

Note

Upon receiving a notification, you must return the plain text SUCCESS to acknowledge receipt. If Evonet does not receive this response, the system will retry sending the notification according to a fixed schedule (intervals: 15/15/30/180/1800/1800/1800/1800/3600 seconds) until it receives SUCCESS or the maximum number of attempts is reached.

For more parameters: see API Explorer Payment Notification .


5. Display Payment Result

Display the payment result to the user based on the response or asynchronous notification. In case of failure, it is recommended to display the result.message or failureReason to help the user take subsequent actions.


6. Recurring

Recurring payments consist of two types of transactions: the initial (or first) recurring transaction and subsequent transactions. The first transaction must complete card binding and payment, subsequent payments use the generated token.

Initial Payment (Save Credentials)

Initiate a payment via POST /payment and set the following fields to generate a token:

{
  "userInfo": {
    "reference": "your_user_reference"
  },
  "paymentMethod": {
    "recurringProcessingModel": "Subscription"
  }
}

Request Example (Subscription):

{
    "merchantTransInfo": {
        "merchantTransTime": "2025-05-28T09:55:57Z"
    },
    "transAmount": {
        "currency": "HKD",
        "value": "100"
    },
    "paymentMethod": {
        "type": "card",
        "card": {
            "cardInfo": {
                "cardNumber": "4895330111111119",
                "expiryDate": "1231"
            }
        },
        "recurringProcessingModel": "Subscription"
    },
    "userInfo": {
        "reference": "your_user_reference"
    },
    "captureAfterHours": "0",
    "allowAuthentication": true,
    "returnURL":"https://www.evonetglobal.com",
    "webhook": "https://webhook.merchant.com"
}

Response Example:

{
    "action": {
        "threeDSData": {
            "method": "GET",
            "url": "https://counter-uat.everonet.com/3ds?dGhyZWVEU1BzcD1ISVRSVVNUJmluc0NvZGU9OTA0NTE5MDAmb3JkZXJOdW09cGF5XzI2MDIwNTE2MzUxNDAwMDIwMDAwNTkwNjkzMzEmc3RvcmVOdW09UzAwNTE4OCZ0aHJlZWRzSW50ZWdyYXRvck9pZD0zMDA0MjMwOCZ0aHJlZURTQXV0aFVSTD1hSFIwY0hNNkx5OXphWFF0TTJSemN5MWpjSGg1TG1ocGRISjFjM1J3WVhrdVkyOXRMblIzTDNSb2NtVmxaSE10YVc1MFpXZHlZWFJ2Y2kxM1pXSXZZWFYwYUM4eUxqRXVNQzgyTlROSlFreEdYMnhQWWs1b1R6Wk1TbGxUVDBkSldGcFJRWFV3ZDFOdWVsWjZWRmxTVkhST1dGbDMmcmV0dXJuVXJsPWFIUjBjSE02THk5M2QzY3VaWFp2Ym1WMFoyeHZZbUZzTG1OdmJRPT0="
        },
        "type": "threeDSRedirect"
    },
    "authentication": {
        "liabilityShift": false,
        "type": "threeDSPage"
    },
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_2602051635140002000059069331",
            "evoTransTime": "2026-02-05T08:35:14Z",
            "retrievalReferenceNum": "603616006955",
            "traceNum": "006955"
        },
        "merchantTransInfo": {
            "merchantTransID": "pay_2602051635140002000059069331",
            "merchantTransTime": "2025-05-28T09:55:57Z"
        },
        "pspTransInfo": {
            "retrievalReferenceNum": "603616006955"
        },
        "status": "verify_pending",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "489533",
            "fundingType": "credit",
            "last4No": "1119",
            "paymentBrand": "Visa"
        },
        "isNetworkToken": false,
        "issuingCountry": "USA",
        "paymentMethodVariant": "Recurring",
        "recurringReference": "recurring_ace2af6e21e4448b9388339831e2d9bd"
    },
    "result": {
        "code": "S0000",
        "message": "Success",
        "pspResponseCode": "4001"
    }
}

Key Fields：

Field NameTypeDescriptionNotes
userInfo.referencestringUnique user identifier in the merchant systemUsed to associate the saved card and generated token with a specific user
paymentMethod.recurringProcessingModelstringType of MIT transactionSubscription, Unscheduled(Auto-debit), COF (One-click Payment)
paymentMethod.recurringReferencestringRecurring agreement IDUsed for subsequent payments
paymentMethod.token.valuestringToken valueUsed for subsequent payments

Subsequent (MIT) Transaction

Use the saved token.value to initiate subsequent payments. Set paymentMethod.type to token.

Request Example:

{
    "merchantTransInfo": {
        "merchantTransTime": "{{merchantTransTime}}"
    },
    "transAmount": {
        "currency": "HKD",
        "value": "100"
    },
    "paymentMethod": {
        "type": "token",
        "token":{
            "value":"pmt_9a4a8a6355c044ce80903ce3d860eacb"
        },
        "recurringProcessingModel": "Subscription"
    },
    "captureAfterHours": "0",
    "allowAuthentication": false,
    "returnURL": "https://www.evonetglobal.com",
    "webhook": "https://webhook.merchant.com"
}

Response Example:

{
    "action": {
        "threeDSData": {
            "method": "GET",
            "url": "https://counter-uat.everonet.com/3ds?dGhyZWVEU1BzcD1ISVRSVVNUJmluc0NvZGU9OTA0NTE5MDAmb3JkZXJOdW09cGF5XzI1MDcxNDA5NTYwNjAwMDEwMDAwMTY5MTI1MzUmc3RvcmVOdW09UzAwNTIyOCZ0aHJlZWRzSW50ZWdyYXRvck9pZD0xMzY5MDYzOSZ0aHJlZURTQXV0aFVSTD1hSFIwY0hNNkx5OXphWFF0TTJSemN5MWpjSGg1TG1ocGRISjFjM1J3WVhrdVkyOXRMblIzTDNSb2NtVmxaSE10YVc1MFpXZHlZWFJ2Y2k5aGRYUm9Mekl1TVM0d0wyRjJUMUpRWTFsV2VGcE1kek5vUm01S2FGcHlPVlZJWmpWaFFsVTFjVVpmWlZreFUxVkhWV1ZUY0dzPSZyZXR1cm5Vcmw9YUhSMGNITTZMeTkzZDNjdVkyRnlaR2x1Wm05c2FXNXJMbU52YlE9PQ=="
        },
        "type": "threeDSRedirect"
    },
    "authentication": {
        "liabilityShift": false,
        "type": "threeDSPage"
    },
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_2507140956060001000016912535",
            "evoTransTime": "2025-07-14T01:56:06Z",
            "retrievalReferenceNum": "519509795840",
            "traceNum": "795840"
        },
        "merchantTransInfo": {
            "merchantTransID": "pay_2507140956060001000016912535",
            "merchantTransTime": "2025-07-14T09:56:05+08:00"
        },
        "pspTransInfo": {
            "retrievalReferenceNum": "519509795840"
        },
        "status": "verify_pending",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "489533",
            "fundingType": "credit",
            "issuingCountry": "USA",
            "last4No": "1119",
            "paymentBrand": "Visa"
        },
        "isNetworkToken": false,
        "paymentMethodVariant": "Recurring",
        "recurringReference": "recurring_ace2af6e21e4448b9388339831e2d9bd",
        "token": {
            "createTime": "2025-07-11T16:32:17+08:00",
            "fingerprint": "6fae07340096b1dc087f52ddbf69e577",
            "status": "enabled",
            "updateTime": "2025-07-11T16:32:33+08:00",
            "userReference": "fill in buyer id in your system",
            "value": "pmt_9a4a8a6355c044ce80903ce3d860eacb"
        }
    },
    "result": {
        "code": "S0000",
        "message": "Success"
    }
}


7. Other Optional APIs:

Get Payment Details

Using GET /payment/{merchantTransID} to query a payment status, merchantTransID is obtained from payment.merchantTransInfo.merchantTransID

Capture Payment

For authorized transactions, this API can be used capture POST /payment/{merchantTransID}/capture

Refund Payment

For transactions that are captured, use POST /payment/{merchantTransID}/refund to carry out partial or full refund of the transaction.

Cancel Payment

Cancel an uncaptured authorized or pending transaction using POST /payment/{merchantTransID}/cancel.


Back to Top 🚀

一、展示支付方式

在收银台页面展示可用的支付方式。用户选择支付方式后，输入支付信息（如卡号、有效期等），提交至后端。


二、发起支付请求

后端通过 POST /payment 接口提交支付请求，需包含 KeyID、密钥 Key 和 Idempotency-Key。

所有接口采用 KeyID、Key的方式进行鉴权，用于校验请求合法性，无需额外进行签名的加解密操作。

请求示例：

curl --location --request POST 'https://sandbox.evonetonline.com/payment' \
--header 'Authorization: sk_sandbox_3bf8181129cb4c9aa3d62cd113b6518a' \
--header 'DateTime: 2025-07-09T11:18:00+08:00' \
--header 'KeyID: kid_55209b3968f748609dbe3a9dde87fdd3' \
--header 'SignType: Key-based' \
--header 'Content-type: application/json' \
--header 'Idempotency-Key: order_202507091032_001' \
--data '{
    "merchantTransInfo": {
        "merchantTransID": "pay_250709135509000153215434"
        "merchantTransTime": "2025-07-09T11:18:00+08:00"
    },
    "transAmount": {
        "currency": "HKD",
        "value": "100"
    },
    "paymentMethod": {
        "type": "card",
        "card": {
            "cardInfo": {
                "cardNumber": "4761360072118507",
                "expiryDate": "0529",
                "holderName": "Paulette Homenick"
            }
        }
    },
    "captureAfterHours": "0",
    "allowAuthentication": true,
    "returnURL":"https://www.evonetglobal.com",
    "webhook": "https://webhook.merchant.com"
}

关键字段：

字段名类型描述注意事项
merchantTransInfo.merchantTransIDstring商户交易 ID，需唯一用于查询、退款等操作
paymentMethod.typestring支付方式（如 card）需匹配对应结构体，可参考下方举例
captureAfterHoursstring自动捕获延迟小时数“0” 表示立即捕获
allowAuthenticationboolean是否启用 3DS 认证建议 true
returnURLstring支付完成后页面重定向地址若上送了 "allowAuthentication": true，则必需
webhookstring异步通知地址接收支付结果

paymentMethod.type 举例：(此为 e-wallet)，不同的 type 下结构体不同，具体参数请参考 paymentMethod.type Values。

    "paymentMethod": {
        "type": "e-wallet",
        "e-wallet": {
            "paymentBrand": "Merpay"
        }
    }
📘

Note

请求超时处理建议：接口支持幂等性，超时后使用相同的报文和 Idempotency-Key 重试，确保响应一致，避免重复发起交易。


三、处理支付响应

根据响应中的 action 对象做后续处理，根据 result.code 和 payment.status 判断交易结果：

  • result.code 以 S 开头（如 S0000）：检查 payment.status

    • 成功状态：authorized、captured、verified、identified
    • 处理中：verify_pending、auth_pending、identify_pending
      • 需根据 action.type 处理，例如跳转至 threeDSData.url

  • 非 S 开头：交易失败，检查 result.message

响应示例：

{
    "action": {
        "threeDSData": {
            "method": "GET",
            "url": "https://counter-uat.everonet.com/3ds?dGhyZWVEU1BzcD1ISVRSVVNUJmluc0NvZGU9OTA0NTE5MDAmb3JkZXJOdW09cGF5XzI1MDcxMDE2MDczMDAwMDEwMDAwMDQzODg1NDEmc3RvcmVOdW09UzAwNTIyOCZ0aHJlZWRzSW50ZWdyYXRvck9pZD0xMzY4MjE5MCZ0aHJlZURTQXV0aFVSTD1hSFIwY0hNNkx5OXphWFF0TTJSemN5MWpjSGg1TG1ocGRISjFjM1J3WVhrdVkyOXRMblIzTDNSb2NtVmxaSE10YVc1MFpXZHlZWFJ2Y2k5aGRYUm9Mekl1TVM0d0wyOTJWRlJaWTJ0V1NGbGtjbVp1ZFRKUFVVNWthamxKU1V4S1VXVnNXbVJqYUU1dlowODRPRlZxUTBrPSZyZXR1cm5Vcmw9YUhSMGNITTZMeTkzZDNjdVkyRnlaR2x1Wm05c2FXNXJMbU52YlE9PQ=="
        },
        "type": "threeDSRedirect"
    },
    "authentication": {
        "liabilityShift": false,
        "type": "threeDSPage"
    },
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_250709135509000153215434",
            "evoTransTime": "2025-07-10T08:07:30Z",
            "retrievalReferenceNum": "519116015325",
            "traceNum": "015325"
        },
        "merchantTransInfo": {
            "merchantOrderReference": "mc-250528",
            "merchantTransID": "pay_250709135509000153215434",
            "merchantTransTime": "2025-07-09T11:18:00+08:00"
        },
        "pspTransInfo": {
            "retrievalReferenceNum": "519116015325"
        },
        "status": "verify_pending",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "476136",
            "fundingType": "credit",
            "holderName": "Paulette Homenick",
            "issuingCountry": "IND",
            "last4No": "8507",
            "paymentBrand": "Visa"
        },
        "isNetworkToken": false
    },
    "result": {
        "code": "S0000",
        "message": "Success"
    }
}

关键字段：

字段名类型描述注意事项
action.typestring操作类型（如 threeDSRedirect）决定后续处理流程，可参考下方举例
payment.statusstring支付状态如 captured 表示成功，verify_pending 表示需认证
result.codestring状态码S 开头表示成功，非 S 开头表示失败
refund.messagestring状态描述如 “Success” 或错误信息

action.type 举例：(此为 redirectUser)，不同的 type 需按指定流程处理，相关数据（如 action.url）在 action 对象中提供，具体请参考 paymentMethod & action Flow。

    "action": {
        "redirectData": {
            "method": "GET",
            "url": "https://stg.openapi.mul-pay.jp/wallet/startSession?p=eyJhY2Nlc3NJZCI6IjBjYWE4M2ZmMzA0NjVhODhhOWE1NjEzZDc3NzMyMzdiIn0"
        },
        "type": "redirectUser"
    }
📘

Note

  • 若 “payment.status = authorized” 且未上送 “captureAfterHours” 字段，需调用 Capture 接口手动捕获。
  • 兜底机制：通过 GET/payment 接口轮询最终状态。

更多参数详见：API Explorer Payment API 接口。


四、处理异步通知

Evonet 通过 POST 请求向 webhook 地址发送支付结果通知，仅包含已完成的状态，不包含处理中的状态。

通知示例：

{
    "eventCode": "Payment",
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_2507091522550001000000860156",
            "evoTransTime": "2025-07-09T15:22:55+08:00"
        },
        "merchantTransInfo": {
            "merchantOrderReference": "mc-250709",
            "merchantTransID": "pay_2507091522550001000000860156",
            "merchantTransTime": "2025-07-09T11:18:00+08:00"
        },
        "status": "captured",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "476136",
            "last4No": "8507",
            "paymentBrand": "Visa"
        }
    }
}

响应：

SUCCESS

关键字段：

字段名类型描述注意事项
eventCodestring通知类型（如 Payment）
payment.statusstring支付状态如 captured 表示成功，declined 表示失败，详见 payment.status 处理逻辑
capture.statusstring捕获状态capture_successed 表示成功，capture_declined 表示失败
refund.statusstring退款状态refund_successed 表示成功，refund_declined 表示失败
cancel.statusstring取消状态cancel_successed 表示成功，cancel_declined 表示失败

处理逻辑

首先检查 eventCode 确定通知类型，然后再检查不同通知类型的 status。

  • Payment - payment.status：

    1. 卡支付（paymentMethod.type = card）：

      • captured：交易成功
      • verified：3DS 认证完成，等待 captured 通知，出现后表示交易成功
      • authorized：授权完成，等待 captured 通知，出现后表示交易成功
        • 若请求中没有上送 captureAfterHours = 0，需调用 Capture 接口进行捕获
      • identified：身份验证完成，可根据业务需求继续支付流程
      • declined：交易失败，检查 failureCode 和 failureReason，并向用户展示以便排查
      • verify_declined：3DS 认证失败
        • 若 POST/payment 请求参数中 allowAuthentication = true 且 authentication.preference = "preferred"，可能会收到 payment.status 为 authorized（需等待 captured）或 declined 的通知
        • 若请求参数非上述情况，收到 verify_declined 时即将交易置为失败处理
      • identify_declined：身份验证失败

    2. 非卡支付：

      • captured：交易成功
      • declined：交易失败，检查 failureCode 和 failureReason，并向用户展示以便排查

  • Capture - capture.status：

    • capture_successed：捕获成功
    • capture_declined：捕获失败

  • Refund - refund.status：

    • refund_successed：退款成功
    • refund_declined：退款失败

  • Cancel - cancel.status：

    • cancel_successed：取消成功
    • cancel_declined：取消失败
📘

Note

收到通知后，需返回纯文本 SUCCESS 表示接收成功。若未收到响应信息，系统会按照规定的频率（15/15/30/180/1800/1800/1800/1800/3600. 单位：秒）定期重新发送异步通知，直到成功收到 SUCCESS 或通知次数达到上限。

更多参数详见：API Explorer Payment Notification 。


五、展示支付结果

根据响应或异步通知，向用户展示支付结果。失败时建议显示 result.message 或 failureReason，便于用户采取后续操作。


六、代扣、一键支付与订阅

支持代扣、一键支付和订阅，通过 token 实现无需重复输入卡信息。首次需完成绑卡并扣款，后续使用 token 发起扣款。

首次支付

通过 POST /payment 发起支付，需设置以下字段生成 token：

{
  "userInfo": {
    "reference": "your_user_reference"
  },
  "paymentMethod": {
    "recurringProcessingModel": "Subscription"
  }
}

请求示例（以订阅为例）：

{
    "merchantTransInfo": {
        "merchantTransTime": "2025-05-28T09:55:57Z"
    },
    "transAmount": {
        "currency": "HKD",
        "value": "100"
    },
    "paymentMethod": {
        "type": "card",
        "card": {
            "cardInfo": {
                "cardNumber": "4895330111111119",
                "expiryDate": "1231"
            }
        },
        "recurringProcessingModel": "Subscription"
    },
    "userInfo": {
        "reference": "your_user_reference"
    },
    "captureAfterHours": "0",
    "allowAuthentication": false,
    "returnURL":"https://www.evonetglobal.com",
    "webhook": "https://webhook.merchant.com"
}

响应示例：

{
    "action": {
        "threeDSData": {
            "method": "GET",
            "url": "https://counter-uat.everonet.com/3ds?dGhyZWVEU1BzcD1ISVRSVVNUJmluc0NvZGU9OTA0NTE5MDAmb3JkZXJOdW09cGF5XzI2MDIwNTE2MzUxNDAwMDIwMDAwNTkwNjkzMzEmc3RvcmVOdW09UzAwNTE4OCZ0aHJlZWRzSW50ZWdyYXRvck9pZD0zMDA0MjMwOCZ0aHJlZURTQXV0aFVSTD1hSFIwY0hNNkx5OXphWFF0TTJSemN5MWpjSGg1TG1ocGRISjFjM1J3WVhrdVkyOXRMblIzTDNSb2NtVmxaSE10YVc1MFpXZHlZWFJ2Y2kxM1pXSXZZWFYwYUM4eUxqRXVNQzgyTlROSlFreEdYMnhQWWs1b1R6Wk1TbGxUVDBkSldGcFJRWFV3ZDFOdWVsWjZWRmxTVkhST1dGbDMmcmV0dXJuVXJsPWFIUjBjSE02THk5M2QzY3VaWFp2Ym1WMFoyeHZZbUZzTG1OdmJRPT0="
        },
        "type": "threeDSRedirect"
    },
    "authentication": {
        "liabilityShift": false,
        "type": "threeDSPage"
    },
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_2602051635140002000059069331",
            "evoTransTime": "2026-02-05T08:35:14Z",
            "retrievalReferenceNum": "603616006955",
            "traceNum": "006955"
        },
        "merchantTransInfo": {
            "merchantTransID": "pay_2602051635140002000059069331",
            "merchantTransTime": "2025-05-28T09:55:57Z"
        },
        "pspTransInfo": {
            "retrievalReferenceNum": "603616006955"
        },
        "status": "verify_pending",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "489533",
            "fundingType": "credit",
            "last4No": "1119",
            "paymentBrand": "Visa"
        },
        "isNetworkToken": false,
        "issuingCountry": "USA",
        "paymentMethodVariant": "Recurring",
        "recurringReference": "recurring_ace2af6e21e4448b9388339831e2d9bd"
    },
    "result": {
        "code": "S0000",
        "message": "Success",
        "pspResponseCode": "4001"
    }
}

关键字段：

字段名类型描述注意事项
userInfo.referencestring商户系统中的用户唯一标识用于将卡信息及 token 绑定到用户账户
paymentMethod.recurringProcessingModelstring交易类型Subscription（订阅）、Unscheduled（代扣）、COF（一键支付）
paymentMethod.recurringReferencestring定期扣款协议 ID用于后续扣款
paymentMethod.token.valuestringToken 值用于后续扣款

后续（MIT 交易）

使用保存的 token.value 发起后续扣款，设置 paymentMethod.type 为 token。

请求示例：

{
    "merchantTransInfo": {
        "merchantTransTime": "{{merchantTransTime}}"
    },
    "transAmount": {
        "currency": "HKD",
        "value": "100"
    },
    "paymentMethod": {
        "type": "token",
        "token":{
            "value":"pmt_9a4a8a6355c044ce80903ce3d860eacb"
        },
        "recurringProcessingModel": "Subscription"
    },
    "captureAfterHours": "0",
    "allowAuthentication": true,
    "returnURL": "https://www.evonetglobal.com",
    "webhook": "https://webhook.merchant.com"
}

响应示例：

{
    "action": {
        "threeDSData": {
            "method": "GET",
            "url": "https://counter-uat.everonet.com/3ds?dGhyZWVEU1BzcD1ISVRSVVNUJmluc0NvZGU9OTA0NTE5MDAmb3JkZXJOdW09cGF5XzI1MDcxNDA5NTYwNjAwMDEwMDAwMTY5MTI1MzUmc3RvcmVOdW09UzAwNTIyOCZ0aHJlZWRzSW50ZWdyYXRvck9pZD0xMzY5MDYzOSZ0aHJlZURTQXV0aFVSTD1hSFIwY0hNNkx5OXphWFF0TTJSemN5MWpjSGg1TG1ocGRISjFjM1J3WVhrdVkyOXRMblIzTDNSb2NtVmxaSE10YVc1MFpXZHlZWFJ2Y2k5aGRYUm9Mekl1TVM0d0wyRjJUMUpRWTFsV2VGcE1kek5vUm01S2FGcHlPVlZJWmpWaFFsVTFjVVpmWlZreFUxVkhWV1ZUY0dzPSZyZXR1cm5Vcmw9YUhSMGNITTZMeTkzZDNjdVkyRnlaR2x1Wm05c2FXNXJMbU52YlE9PQ=="
        },
        "type": "threeDSRedirect"
    },
    "authentication": {
        "liabilityShift": false,
        "type": "threeDSPage"
    },
    "payment": {
        "evoTransInfo": {
            "evoTransID": "pay_2507140956060001000016912535",
            "evoTransTime": "2025-07-14T01:56:06Z",
            "retrievalReferenceNum": "519509795840",
            "traceNum": "795840"
        },
        "merchantTransInfo": {
            "merchantTransID": "pay_2507140956060001000016912535",
            "merchantTransTime": "2025-07-14T09:56:05+08:00"
        },
        "pspTransInfo": {
            "retrievalReferenceNum": "519509795840"
        },
        "status": "verify_pending",
        "transAmount": {
            "currency": "HKD",
            "value": "100.00"
        }
    },
    "paymentMethod": {
        "card": {
            "first6No": "489533",
            "fundingType": "credit",
            "issuingCountry": "USA",
            "last4No": "1119",
            "paymentBrand": "Visa"
        },
        "isNetworkToken": false,
        "paymentMethodVariant": "Recurring",
        "recurringReference": "recurring_ace2af6e21e4448b9388339831e2d9bd",
        "token": {
            "createTime": "2025-07-11T16:32:17+08:00",
            "fingerprint": "6fae07340096b1dc087f52ddbf69e577",
            "status": "enabled",
            "updateTime": "2025-07-11T16:32:33+08:00",
            "userReference": "fill in buyer id in your system",
            "value": "pmt_9a4a8a6355c044ce80903ce3d860eacb"
        }
    },
    "result": {
        "code": "S0000",
        "message": "Success"
    }
}

七、可选接口

查询支付状态 (GET)

通过 GET /payment/{merchantTransID} 接口查询支付状态。merchantTransID 需从支付响应或异步通知中的 payment.merchantTransInfo.merchantTransID 中获取。

捕获 (Capture)

对于 authorized 状态的交易，可通过 POST /payment/{merchantTransID}/capture 完成最终扣款。

退款 (Refund)

通过 POST /payment/{merchantTransID}/refund 接口对已经完成支付的订单发起全额或者部分退款。

取消 (Cancel)

通过 POST /payment/{merchantTransID}/cancel 接口取消未捕获的 authorized 或 pending 交易。


回顶部 🚀


Updated 3 days ago

Did this page help you?
